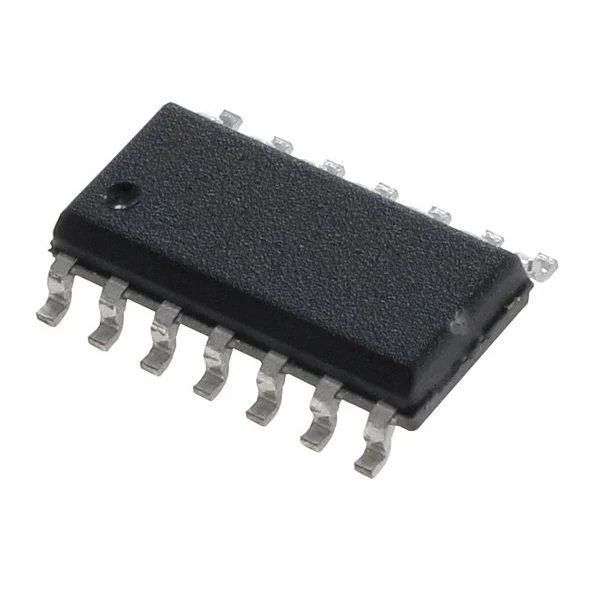

Description: Precision Amplifiers Quad Prec CMOS Op Amp
Operating Supply Current :: |
450 UA |
Ib - Input Bias Current :: |
100 FA |
Mounting Style :: |
SMD/SMT |
Minimum Operating Temperature :: |
- 40 C |
SR - Slew Rate :: |
1.5 V/us |
Supply Voltage - Max :: |
15.5 V |
Package / Case :: |
SOIC-Narrow-14 |
Maximum Operating Temperature :: |
+ 85 C |
Supply Voltage - Min :: |
4.5 V |
Packaging :: |
Tube |
Output Current Per Channel :: |
34 MA |
Product Category :: |
Precision Amplifiers |
En - Input Voltage Noise Density :: |
22 NV/sqrt Hz At 5 V |
Series :: |
LMC6084 |
GBP - Gain Bandwidth Product :: |
1.3 MHz |
Number Of Channels :: |
4 Channel |
Vos - Input Offset Voltage :: |
350 UV |
Manufacturer :: |
Texas Instruments |
Shutdown :: |
No Shutdown |
CMRR - Common Mode Rejection Ratio :: |
66 DB To 85 DB |
