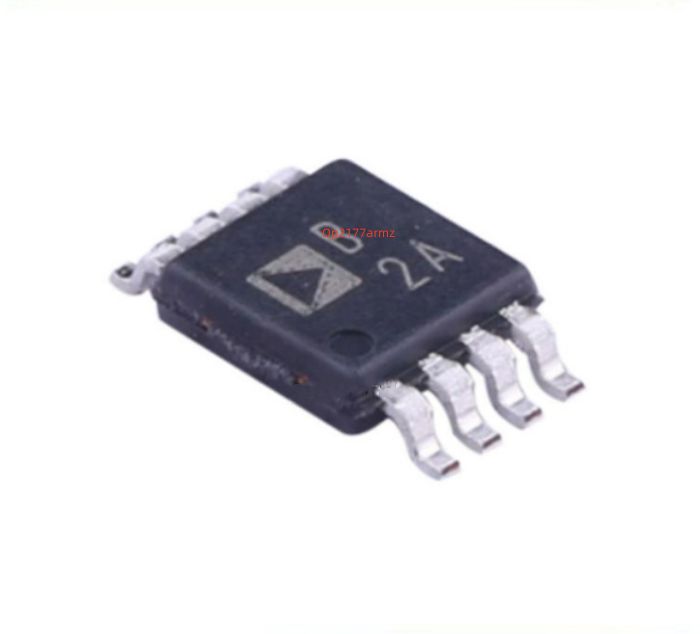

Description: Precision Amplifiers Prec Low Noise Low Input Bias Crnt Dual
Operating Supply Current :: |
400 UA |
Ib - Input Bias Current :: |
2 NA |
Mounting Style :: |
SMD/SMT |
Minimum Operating Temperature :: |
- 40 C |
SR - Slew Rate :: |
0.7 V/us |
Supply Voltage - Max :: |
15 V |
Package / Case :: |
MSOP-8 |
Maximum Operating Temperature :: |
+ 125 C |
Supply Voltage - Min :: |
2.5 V |
Packaging :: |
Tube |
Output Current Per Channel :: |
10 MA |
Product Category :: |
Precision Amplifiers |
En - Input Voltage Noise Density :: |
7.9 NV/sqrt Hz At +/- 5 V |
Series :: |
OP2177 |
GBP - Gain Bandwidth Product :: |
1.3 MHz |
Number Of Channels :: |
2 Channel |
Vos - Input Offset Voltage :: |
15 UV |
Manufacturer :: |
Analog Devices |
Shutdown :: |
No Shutdown |
CMRR - Common Mode Rejection Ratio :: |
120 DB |
