Product Details
Payment & Shipping Terms

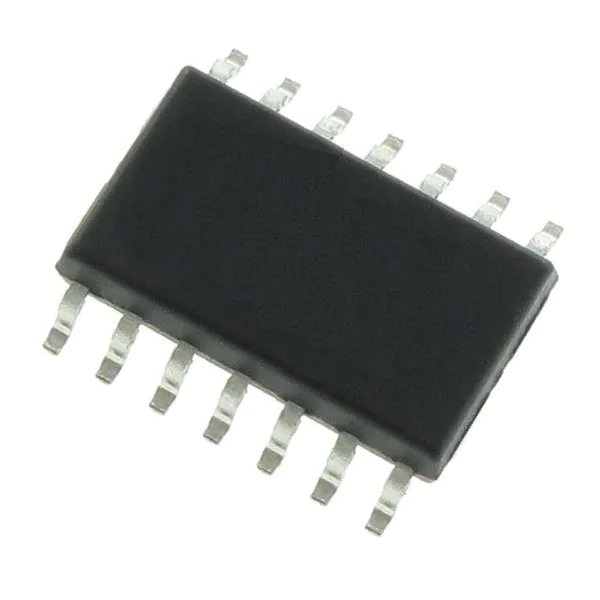

Description: Operational Amplifiers - Op Amps Input Output 8MH TSV911 TSV912 TSV914
Operating Supply Current :: |
1.1 MA |
Ib - Input Bias Current :: |
10 PA |
Mounting Style :: |
SMD/SMT |
Minimum Operating Temperature :: |
- 40 C |
SR - Slew Rate :: |
4.5 V/us |
Supply Voltage - Max :: |
5.5 V |
Package / Case :: |
SO-14 |
Maximum Operating Temperature :: |
+ 125 C |
Supply Voltage - Min :: |
2.5 V |
Packaging :: |
Tube |
Output Current Per Channel :: |
35 MA |
Product Category :: |
Operational Amplifiers - Op Amps |
Series :: |
TSV914 |
GBP - Gain Bandwidth Product :: |
8 MHz |
Number Of Channels :: |
4 Channel |
Vos - Input Offset Voltage :: |
4.5 MV |
Manufacturer :: |
STMicroelectronics |
Shutdown :: |
No Shutdown |
CMRR - Common Mode Rejection Ratio :: |
58 DB |
Operating Supply Current :: |
1.1 MA |
Ib - Input Bias Current :: |
10 PA |
Mounting Style :: |
SMD/SMT |
Minimum Operating Temperature :: |
- 40 C |
SR - Slew Rate :: |
4.5 V/us |
Supply Voltage - Max :: |
5.5 V |
Package / Case :: |
SO-14 |
Maximum Operating Temperature :: |
+ 125 C |
Supply Voltage - Min :: |
2.5 V |
Packaging :: |
Tube |
Output Current Per Channel :: |
35 MA |
Product Category :: |
Operational Amplifiers - Op Amps |
Series :: |
TSV914 |
GBP - Gain Bandwidth Product :: |
8 MHz |
Number Of Channels :: |
4 Channel |
Vos - Input Offset Voltage :: |
4.5 MV |
Manufacturer :: |
STMicroelectronics |
Shutdown :: |
No Shutdown |
CMRR - Common Mode Rejection Ratio :: |
58 DB |
